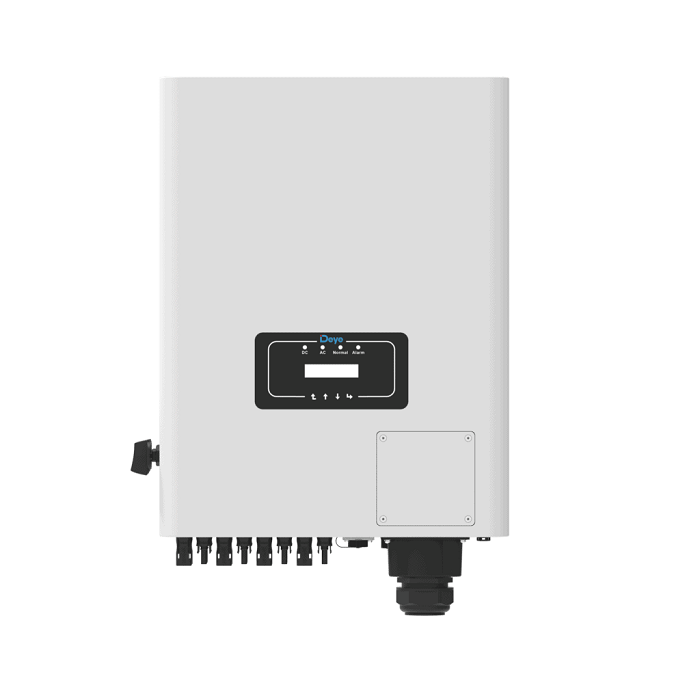

Deye SUN-23/25/30K-G04-LV
₦2,500,000.00
- 127V/220V, 133V/230V and 50/60Hz, Three phase system
- Max. 4 MPP trackers, Max. efficiency up to 98.7%
- Zero export application, VSG application
- String intelligent monitoring (optional)
- Wide output voltage range
- Anti-PID function (Optional)
- Model: SUN-23K-G04-LV, SUN-25K-G04-LV, SUN-30K-G04-LV
- Max. PV Input Power (kW): 36.8, 40, 48
- Max. PV Input Voltage (V): 800
- Start-up Voltage (V): 250
- MPPT Voltage Range (V): 200-700
- Rated PV Input Voltage (V): 400
- Max. Operating PV Input Current (A): 40+40+40, 40+40+40+40
- Max. Input Short Circuit Current (A): 60+60+60, 60+60+60+60
- Rated AC Output Active Power (kW): 23, 25, 30
- Max. AC Output Apparent Power (kVA): 23, 25, 30
- Rated AC Output Current (A): 60.4/57.7, 65.7/62.7, 78.8/75.2
- Max. AC Output Current (A): 60.4/57.7, 65.7/62.7, 78.8/75.2
- Rated Output Voltage/Range (V):127V/220V, 133V/230V 0.85UN-1.1UN
- Total Current Harmonic Distortion THDi: <3%
- Rated Output Grid Frequency/Range(Hz): 0.8 leading to 0.8 lagging
- Max. Efficiency: 98.7%
- MPPT Efficiency: >99%
- Operating Temperature Range (°C): -25 to +65 ℃, >45℃ Derating
- Permissible Ambient Humidity: 0-100%
- Permissible Altitude (m): 4000m
- Ingress Protection(IP) Rating: IP 65
- Cabinet Size (WxHxD mm): 434×570×243
- Weight (kg): 37.1
- Warranty: 5 Years
The Deye SUN-23/25/30K-G04-LV is a robust and reliable solution for large-scale solar installations. Its powerful capabilities, advanced features, and comprehensive protection make it an ideal choice for maximizing your solar energy production and achieving energy independence.
