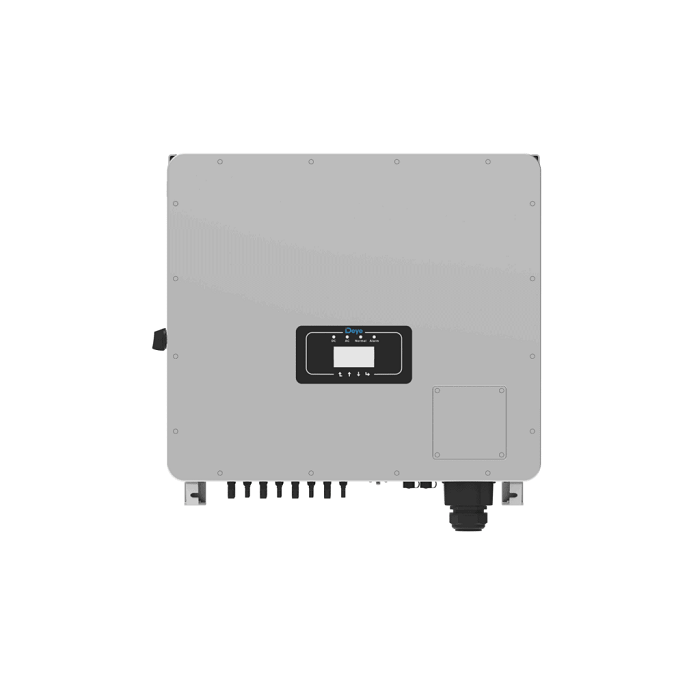

Deye SUN-33/35/40/45/50K-G04P3-EU-AM4-LV
₦4,000,000.00
- 127V/220V, 133V/230V and 50/60Hz, Three phase system
- 4 MPP trackers, Max. efficiency up to 98.7%
- Zero export application, VSG application
- String intelligent monitoring (optional)
- Wide output voltage range
- Anti-PID function (Optional)
- Model: SUN-33K-G04P3-EU-AM4-LV, SUN-35K-G04P3-EU-AM4-LV, SUN-40K-G04P3-EU-AM4-LV, SUN-45K-G04P3-EU-AM4-LV, SUN-50K-G04P3-EU-AM4-LV
- Max. PV Input Power (kW): 42.9, 45.5, 52, 58.5, 65
- Max. PV Input Voltage (V): 800
- Start-up Voltage (V): 250
- MPPT Voltage Range (V): 200-700
- Rated PV Input Voltage (V): 400
- Max. Operating PV Input Current (A): 40+40+40+40, 60+60+60+60
- Max. Input Short Circuit Current (A): 60+60+60+60
- Rated AC Output Active Power (kW): 33, 35, 40, 45, 50
- Max. AC Output Apparent Power (kVA): 33, 35, 40, 45, 50
- Rated AC Output Current (A): 86.7/82.8, 91.9/87.8, 105/100.3, 118.2/112.8, 131.3/125.4
- Max. AC Output Current (A): 86.7/82.8, 91.9/87.8, 105/100.3, 118.2/112.8, 131.3/125.4
- Rated Output Voltage/Range (V): 127V/220V, 133V/230V 0.85UN-1.1UN
- Total Current Harmonic Distortion THDi: <3%
- Rated Output Grid Frequency/Range(Hz): 0.8 leading to 0.8 lagging
- Max. Efficiency: 98.7%
- MPPT Efficiency: >99%
- Operating Temperature Range (°C): -25 to +65 ℃, >45℃ Derating
- Permissible Ambient Humidity: 0-100%
- Permissible Altitude (m): 2000m
- Ingress Protection(IP) Rating: IP 65
- Cabinet Size (WxHxD mm): 698×613×236.5
- Weight (kg): 53.7
- Warranty: 5 Years
