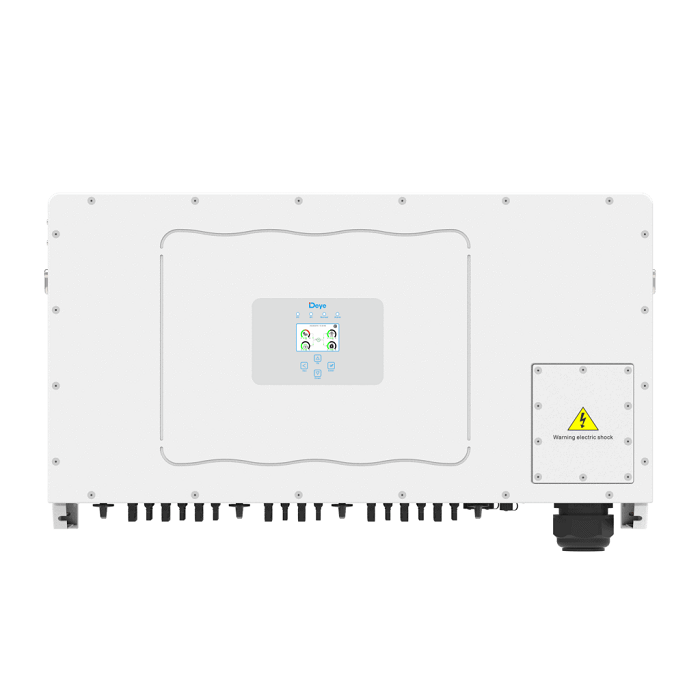

Deye SUN-60/70/75K-G01P3-EU-AM8-LV
₦3,450,000.00
- 127V/220V, 133V/230V and 50/60Hz, Three phase system
- 8 MPP trackers, Max. efficiency up to 98.7%
- Zero export application, VSG application
- String intelligent monitoring (optional)
- Wide output voltage range
- Anti-PID function (Optional)
- Maximum PV Input Power: 90kW, 105kW, 112.5kW (depending on model)
- Maximum PV Input Voltage: 800V
- Start-up Voltage: 250V
- MPPT Voltage Range: 200-700V
- Number of MPP Trackers: 8
- Number of Strings per MPP Tracker: 4+4+4+4+4+4+4+4
- Rated AC Output Active Power: 60kW, 70kW, 75kW (depending on model)
- Max. AC Output Apparent Power: 60kVA, 70kVA, 75kVA (depending on model)
- Rated AC Output Voltage/Range: 127V/220V, 133V/230V 0.85UN-1.1UN
- Rated AC Output Current: 150.4A, 175.5A, 188A (depending on model)
- Max. AC Output Current: 157.5A, 183.8A, 196.9A (depending on model)
- Efficiency: Max. 98.7%
- MPPT Efficiency: >99%
- Operating Temperature Range: -25°C to +60°C (derating above 45°C)
- Ingress Protection (IP) Rating: IP65
- Cabinet Size: 1006×516×325.5mm (excluding connectors and brackets)
- Weight: 103kg
- Warranty: 5 years
